Beyond Prototyping: Traceable Workflow from Start to Finish
Order Bundle Now
The Raise3D DF2 Solution is a Digital Light Processing (DLP) printing system that provides fast printing speeds, ultra-smooth surfaces, high precision, and exceptional reliability.
It is designed for engineering prototyping, manufacturing aids, and low-volume production using a wide variety of high-performance resins.

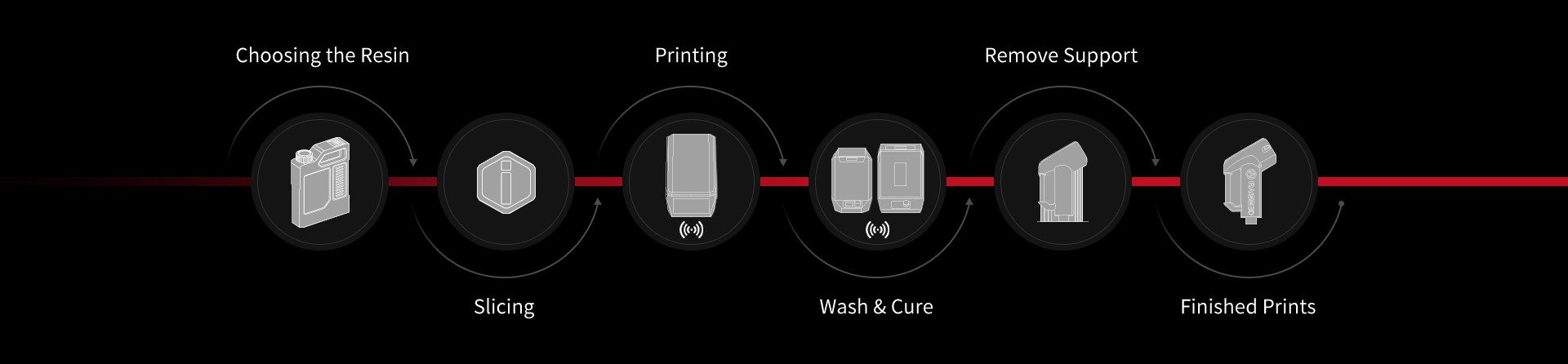

Discover the efficient workflow via RFID as we redefine the possibilities of resin 3D printing.
The Raise3D DF2 Solution utilizes RFID technology to seamlessly integrate hardware, software, and materials, offering users a streamlined workflow without the need for manual entry of process settings.
This not only saves operational time but also ensures a consistent workflow, which is critical for production.
Compared to the time-consuming and messy workflow of DLP, the Raise3D DF2 printer, DF Wash and DF Cure come with an RFID-tag-integrated smart build plate and a logical interface that ensures a cleaner and
simpler workflow throughout the printing, washing and curing process. This not only streamlines manual operations but also ensures your printing tasks are always accomplished with the same print results.
XY Pixel: 78.5 μm
XY Resolution: 2560 x 1440
From intricate model designs to complex engineering prototypes, Raise3D DF2 printer adopts top performing optical components, so that every detail is captured with the utmost accuracy.
The industrial-grade DLP projector combined with advanced features such as Contour Compensation and Anti-Aliasing, the DF2 produces significantly finer details and smoother surfaces compared to LCD-based 3D printing technologies.
Bigger, Faster, Better
200 x 112 x 300 mm
Max. up to 10 kg
From large-scale prototypes to intricate models, Raise3D DF2 printer makes it easy
The Raise3D DF2 printer adapts effortlessly to the scale of production and maintains consistent quality.
The Magic Layout allows you to scale from one part to a full be right on the large touchscreen, eliminating the need to re-slice your proven print job.
RFID automatically stores and reads the relevant parameters of an entire workflow for printing, washing and curing, and is easy to mount and unmount, reducing the need for tedious manual operations.
The Raise3D DF2 printer is equipped with a high-performance touch screen for a better user experience:
Magic Layout – allows for the easy adjustment of the print layout and duplicate prints
Automatic Pre-print Inspection – verifies working conditions, including resin type, build platform installation, feeding station, resin margin, etc.
Maximum load capacity of 20 kg for Z-axis. Features no staggered layers and high movement accuracy, ensuring the stability of printing large parts and extended use
Air peel design between the resin vat bottom and the highly clear glass reduces the force from 50 kilograms to 10 kilograms, effectively peeling each layer and ensuring successful printing.
High-quality optical components are used throughout the entire optical path projection system to reduce loss, eliminate dispersion, ensuring the reproduction of sharp features.
The Texas Instruments Industrial Grade DMD Chip gives premium light output quality with a frame size error ≤ ±0.1 mm and distortion rate ≤ 0.1%
The use of DLP instead of LCD technologies gives a clear pixel image without the superimposed effects of pixel contacts or a surface light field effect.
Read more on Raise3D
Print Technology: DLP
Build Size (W×D×H): 200 x 112 x 300 mm
Machine Size (W×D×H): 450 x 400 x 730 mm
XY Pixel Size: 78.5 micron
XY Resolution: 2560 x 1440
Max Z Workload: 10 kg
Max Printing Speed: 25 mm/h (0.1 mm per layer)
Layer Height: 50-100 micron (0.05 - 0.1mm
Resin Level Detection: Yes
Auto Resin Refill: Yes
Control Panel: Touch Screen (1920 x 720, Magic Layout)
RFID Print Platform: Yes
Level Calibration: Calibrated in Factory
Chamber Heating: Yes (Max. 40℃)
Machine Size (W×D×H): 400 x 410 x 646 mm
Washing Tank Volume: 14L
Max. Washing Volume: 200 x 112 x 300 mm
Compatible Solvent: IPA, Water, TPM
Machine Size (W×D×H): 400 x 410 x 646 mm
Washing Tank Volume: 14L
Max. Washing Volume: 200 x 112 x 300 mm
Compatible Solvent: IPA, Water, TPM
RFID Print Platform: Supported
Automatic Liquid Drainage: Yes
Machine Size (W×D×H): 490 x 400 x 610 mm
Max. Curing Size: φ230 x 300 mm
Net Weight: 31.95 kg
Gross Weight: 45.5 kg
Curing Source: LED (365nm, 385nm, 405nm mixed)
Air Heating (Max. Temperature: 120℃)

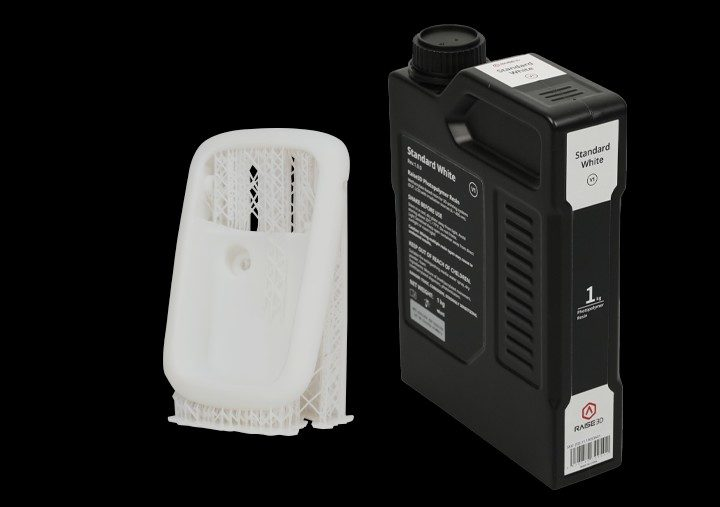

Easy-to-print resin for prototyping and design

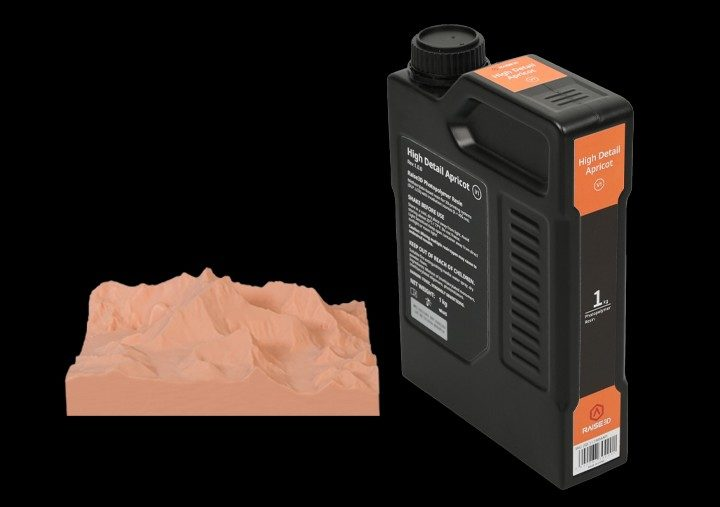

EHigh-resolution material for detailed models

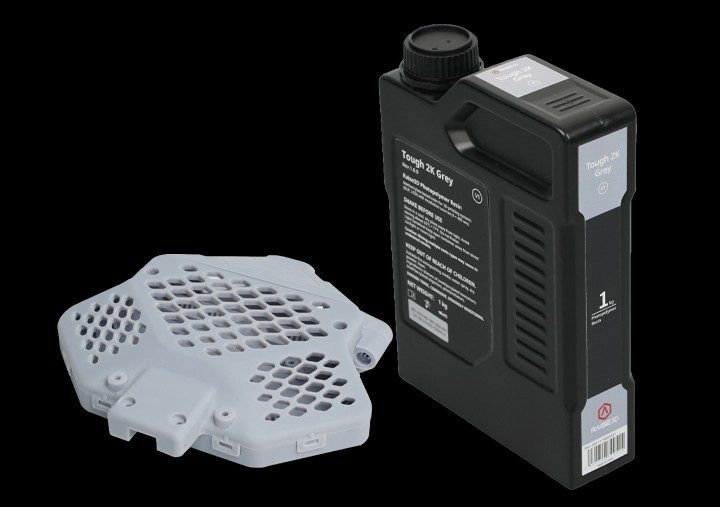

Tough and durable resin for functional applications

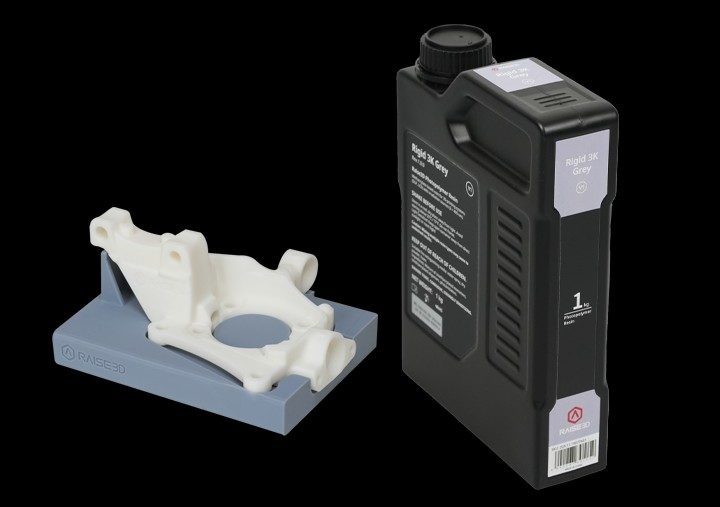

Material with high strength, rigidity and heat-resistance
