THE Tri-Mode Laser 3D Scanner

The EinScan Rigil v1.2

Triple Work Modes: Standalone & Wireless PC & Wired PC
Hybrid Light Sources: Blue Laser + IR VCSEL
Marker-Free Laser Scanning
Full-Wireless Workflow
Powerful Hardware
Dynamic Laser Switching

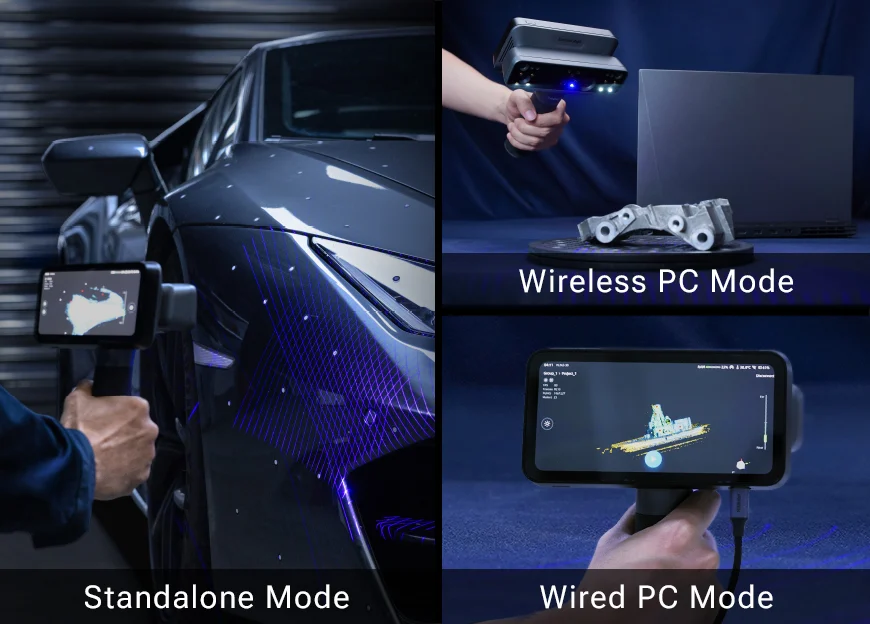

Triple Work Modes

The EinScan Rigil offers three operation modes to unlock max performance and flexibility

Standalone Mode: No PC connection required, all scanning and processing tasks are completed directly on the hardware.
Wireless PC Mode: Leveraging built-in Wi-Fi 6, enables seamless wireless scanning and allows connection to a powerful computer, optimizing performance for complex tasks and large data volumes.
Wired PC Mode: Maintaining availability, maximum scanning speed, and data volume in complex network environments.

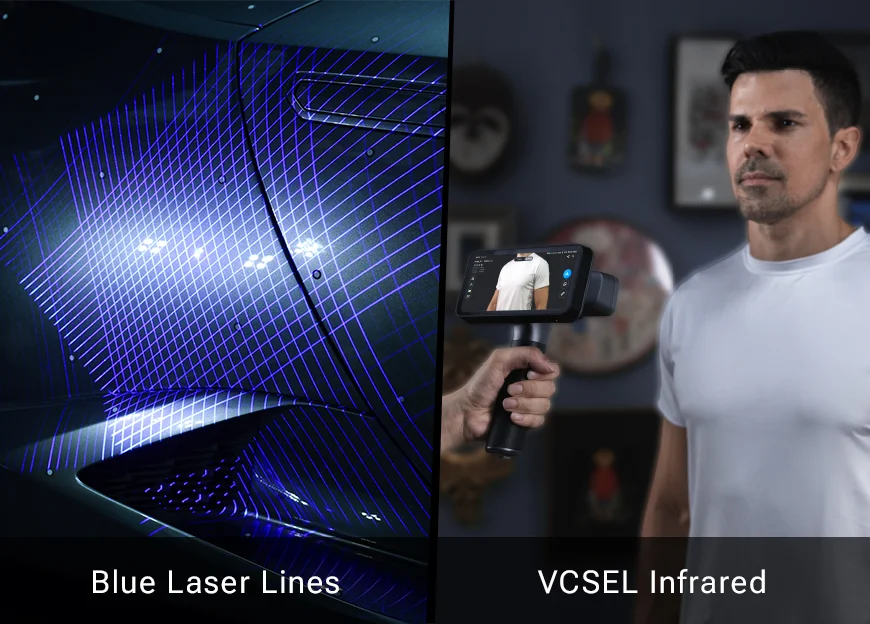

Hybrid Light Source

2 separate groups of cameras are speciﬁcally designed to capture diﬀerent light sources respectively.

Blue laser lines
VCSEL infrared

Laser HD Mode

Provides high-quality models with 0.04 + 0.06 mm/m volumetric accuracy and high geometric resolution up to 0.05mm.

19 + 19 crossed laser lines: for high speed scanning, delivers top-tier efficiency and flexibility.
7 parallel laser lines: for fine details, provides consistent results.

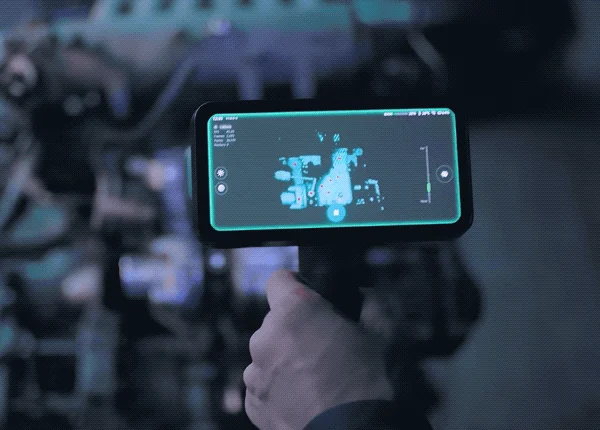

Dynamic Laser Switching

Two laser scan modes can be switched during the scanning process, and the data can be merged to achieve speed and detail in one scanning project.

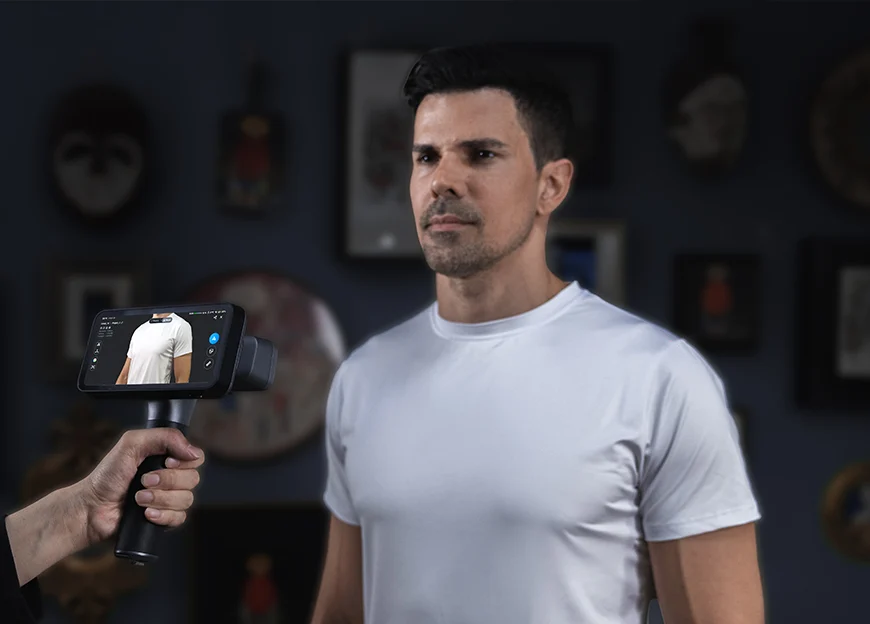

IR Rapid Mode

Volumetric accuracy up to 0.1 + 0.3 mm/m
Working distance 160 ~ 1500 mm
Scanning speed up to 1,600,000 points/s

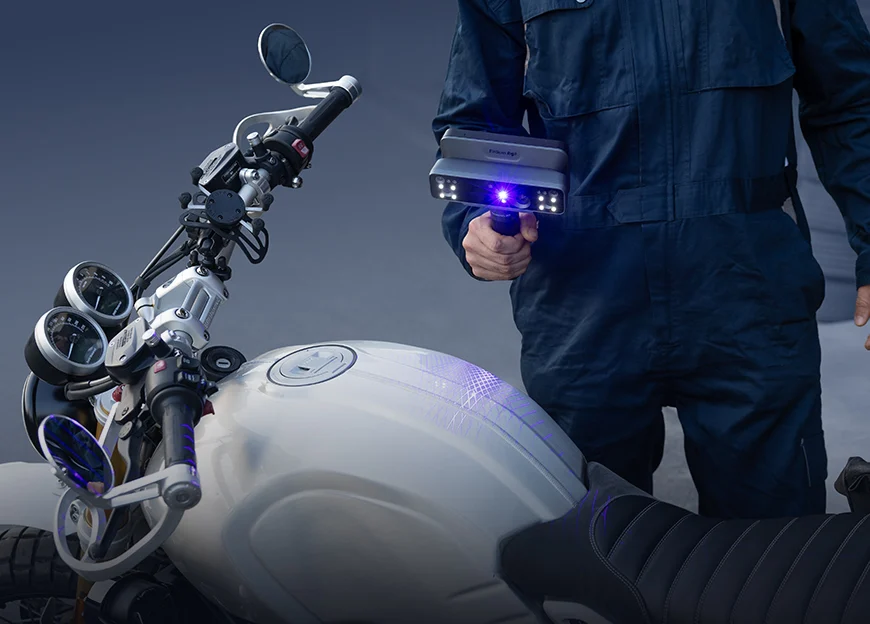

Marker-Free Laser Scanning

EinScan Rigil features a special tracking algorithm, which provides marker-free blue laser scanning through a Laser + IR hybrid scan mode currently available in EXScan Rigil software. This enables better efficiency than traditional marker-based laser scanning and better data quality than marker-free IR scanning.

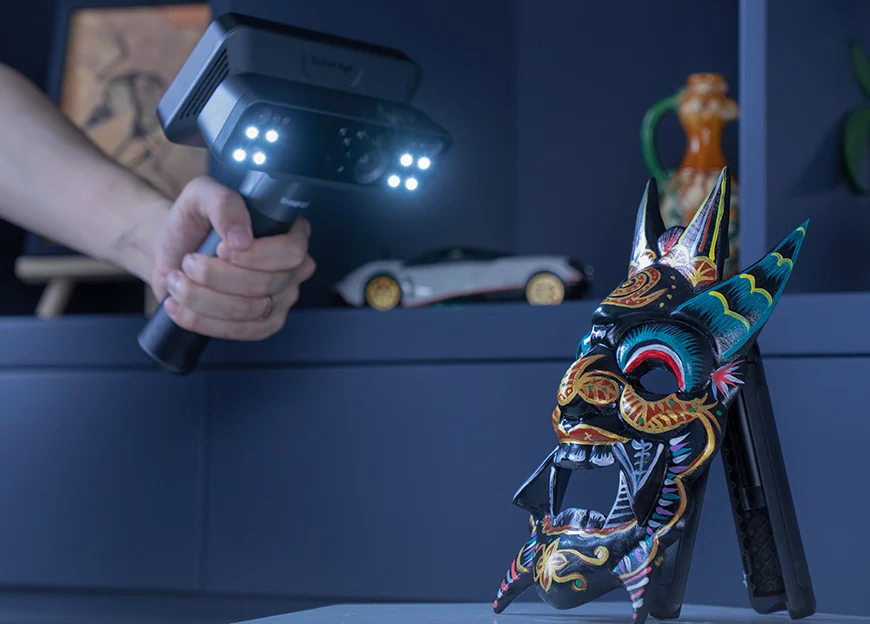

Full Color Texture Scanning

Equipped with a 5MP high-deﬁnition camera that can restore high-quality texture details, allowing designers, engineers, and artists to maintain a high fidelity of the model during the digitization process, providing more precise information for subsequent analysis and creation.

Wireless Workflow

Wireless scanning: Without connecting to PC
Wireless transfer: Data sharing to SHINING 3D Cloud
Wireless screen casting: Display on a second screen

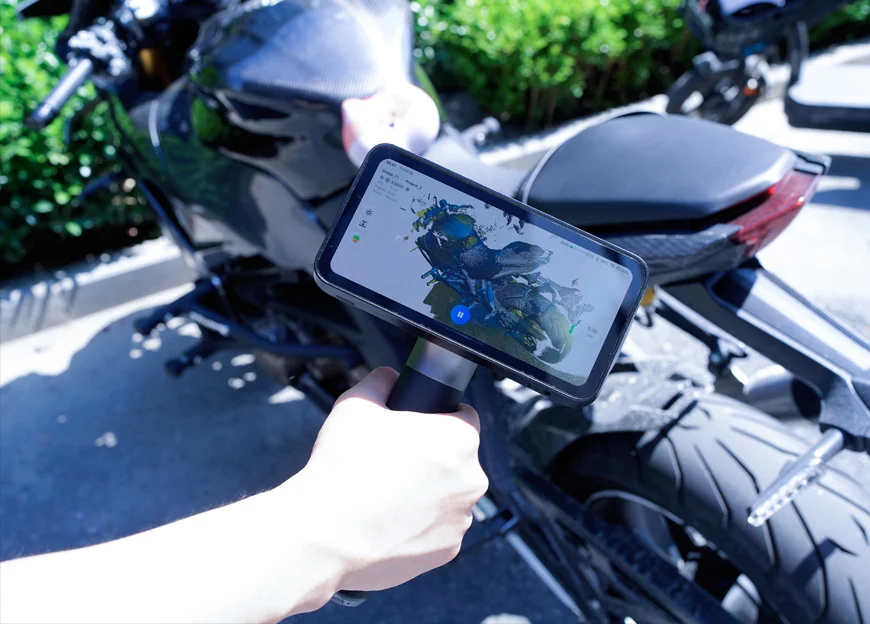

Reliable Scanning from Workshop to Outdoors

Working eﬃciently in sunlight outdoors.
Adaptable for dark and reflective metal surfaces without spray.

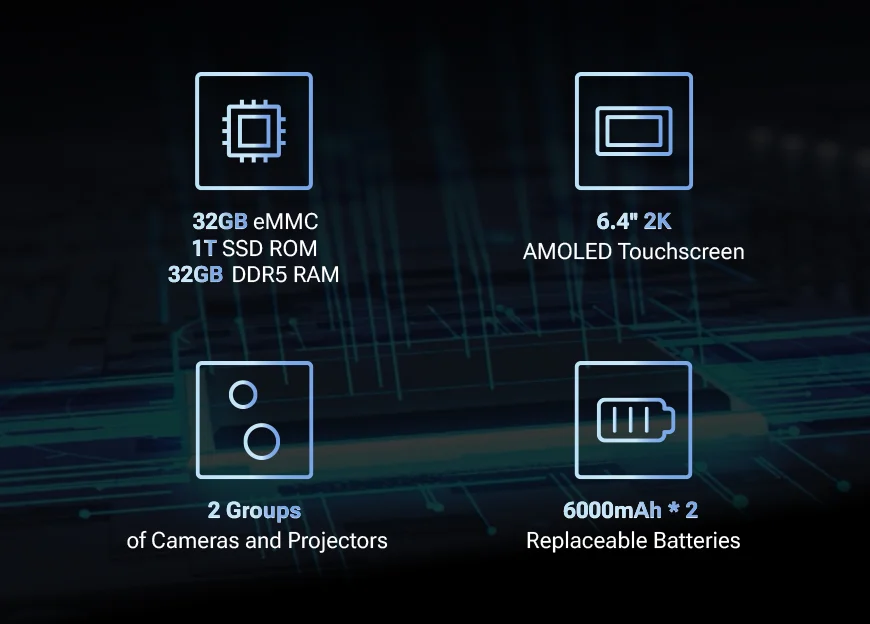

Powerful Hardware

6.4inch 2K AMOLED
32GB DDR5 RAM
32GB eMMC + 1TB SSD ROM
6000mAh × 2 Replaceable Batteries

Specification	Details
Scan Modes	Laser HD; IR Rapid
Light Source	25+25 (was 19+19) crossed blue laser lines; 7 parallel blue laser lines; IR VCSEL
Resolution	Laser: 0.05–10 mm; IR: 0.2–10 mm
Scanning Speed	Laser: 4,400,000 points/s (HD) \| 940,000 points/s; IR: 1,600,000 points/s
Working Distance	Laser: 170–550 mm; IR: 160–1500 mm
Alignment Modes	Laser: Global Markers / Markers / Features / Hybrid; IR: Global Markers / Markers / Features / Texture / Hybrid
Volumetric Accuracy	Laser: up to 0.04 + 0.06 mm/m; IR: up to 0.1 + 0.4 mm/m
Camera Resolution	3D: 2.3 MP ×2 and 1.3 MP ×2; Texture: 5 MP
Output Formats	STL, OBJ, PLY, 3MF, ASC
Laser Class	Class II
Operating Modes	Standalone (wireless, built-in compute), PC-Wireless, PC-Wired
Hardware (scanner)	32 GB DDR5 RAM; 6.4″ 2K AMOLED touch screen
I/O	USB Type-C
Battery	6000 mAh ×2 (replaceable); supports 60 W PD 3.0 charging
Dimensions (H×D×W)	233 × 180 × 72.8 mm
Weight	870 g (batteries included)
Operating Temperature	−10 °C to 40 °C
Certifications	CE, FCC, RoHS, WEEE, FDA, SRRC, IP50
PC Requirements (for PC modes)	Windows 11 Pro 22H2 (64-bit); NVIDIA GeForce RTX 3060 (Laptop) or above; 8 GB+ VRAM; 64 GB+ RAM (DDR5 dual-channel); USB 3.0; 13th-Gen Intel Core i7-13700H or above

Contact Us to check or book a demonstration
